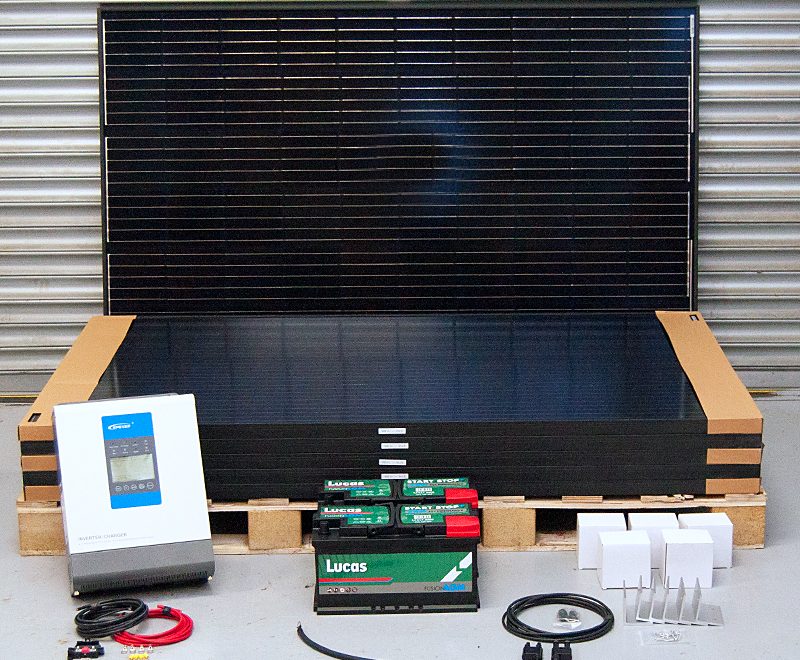

2400W, 48V, 2.7kWh Deluxe Off-Grid Solar Kit
The 2400W, 48V, 2.7kWh Deluxe Off-Grid Solar System includes the following components:
6 x 400w domestic solar panel – Panel model may vary depending on availability
1 x EPEVER UP3000-M6142 2400w solar inverter charger
2 x DC Isolator
6 x Aluminium L shape mounting brackets (set of 6)
2 x MC4 type connectors (1 pair, male & female)
4 x Battery terminal clamps (1 pair, positive & negative)
1 x 70a Midi fuse & fuse holder
1 x Battery isolator switch
4 x 12v 110ah Leoch AGM Leisure battery
40 meters of 4mm solar cable
1 meter 10mm cable (red)
1 meter 10mm cable (black)
6 x cable lugs (2 x 10/10, 2 x 10/8, 2 x 10/5)
The inverter charger in this kit is a 2400w model.
Please note that that the mounts supplied are basic aluminium L-shape brackets. For tiled or corrugated roof surfaces different mounting options will be needed. Please email sales@sunstore.co.uk if you need different mounting options for your kit.
Upgrade options:
- 5.4kwh useable battery is 8 x 110ah AGM batteries in series-parallel configuration (this includes the additional terminal clamps and connection leads required)
- 4.8kwh usable lithium is a single 100ah 48v Ligen battery – please note that these batteries are built to order and may have a approximate 2 week lead time.
Pre-wired Option:
Option includes a 1.2m x 1.2m board with your solar kit mounted upon. Built up here in our workshop prior to delivery. Wired, tested and ready to go. Our pre-assembled plug & play kits will remove much of the DIY element of our off grid kits.
Leaving you to simply
- Mount the solar panels.
- Wire up your solar panels to the pre-assembled board using the simple pre-wired cables.
- Connect the batteries.
