900W, 24V, 2.3kWh Professional Off-Grid Solar Kit

Solar Battery Chargers

900W, 24V, 2.3kWh Professional Off-Grid Solar Kit

This small scale off-grid kit is ideal for medium usage applications such as summer houses, garages and workshops. In UK summer conditions this system could generate approximately 5kWh per day.

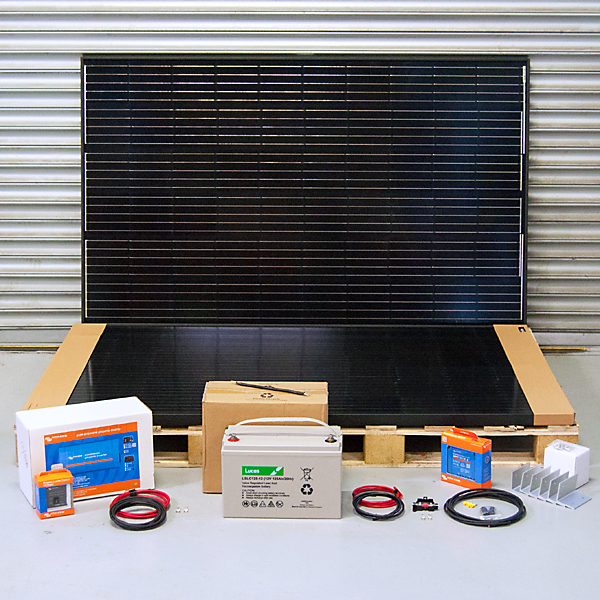

The 900W, 24V, 2.3kWh Professional off-grid kit includes the following components:

2 x 450w domestic solar panel – Panel model may vary depending on availability

1 x Victron SmartSolar MPPT 100/30 Controller

1 x DC Isolator

2 x Aluminium L shape mounting brackets (set of 6)

1 x MC4 type connectors (1 pair, male & female)

4 x Stud-Type Battery Terminal Clamps

4 x 12v 110ah Leoch AGM Leisure battery

1x 30a Midi Fuse & Holder

1 x Battery isolator switch

20 meters of 4mm single core solar cable

2 x Yellow 8mm ring terminal

2 x Yellow 6mm ring terminal

2 x Yellow 10mm ring terminal

4 x Battery Connection Cables

If an inverter has been chosen, the following components will also be included:

1 x Midi Fuse and Holder with 1x 70A Fuse provided

1 x VE.Direct inverter control

1 x 1 Metre Black 10mm Cable

1 x 1 Metre Red 10mm Cable

2 x 10-8 Lugs

2 x 10-5 Lugs

3 x 3A 12v Solar Wire (1m)

This kit is supplied as standard with a Victron Phoenix 24v 500Va inverter, but can be used as 24v only without an inverter.

This kit can be ordered as 24v only or with a 250Va, 375Va, 500Va or 800Va Victron Phoenix inverter with VE.Direct inverter control

Please note that that the mounts supplied are basic aluminium L-shape brackets. For tiled or corrugated roof surfaces different mounting options will be needed. Please email sales@sunstore.co.uk if you need different mounting options for your kit.

Upgrade options:

  • 6.7kwh usable lithium is a single 280ah 24v Fogstar battery.

Pre-wired Option:

Option includes a 1.2m x 1.2m board with your solar kit mounted upon. Built up here in our workshop prior to delivery. Wired, tested and ready to go.  Our pre-assembled plug & play kits will remove much of the DIY element of our off grid kits.

Leaving you to simply

  1. Mount the solar panels.
  2. Wire up your solar panels to the pre-assembled board using the simple pre-wired cables.
  3. Connect the batteries.

Purchase 900W, 24V, 2.3kWh Professional Off-Grid Solar Kit
